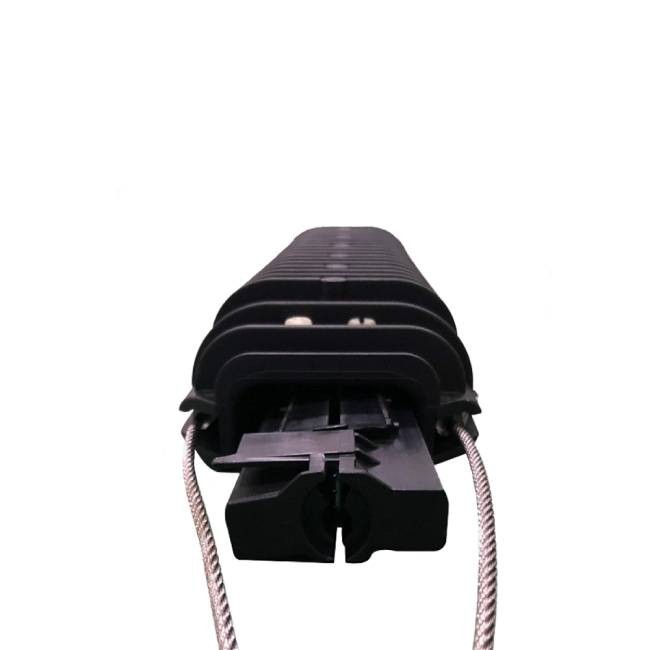

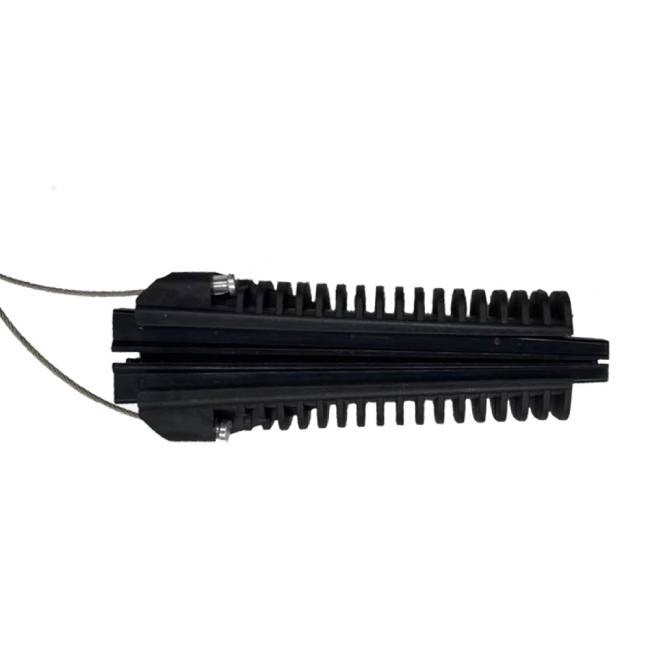

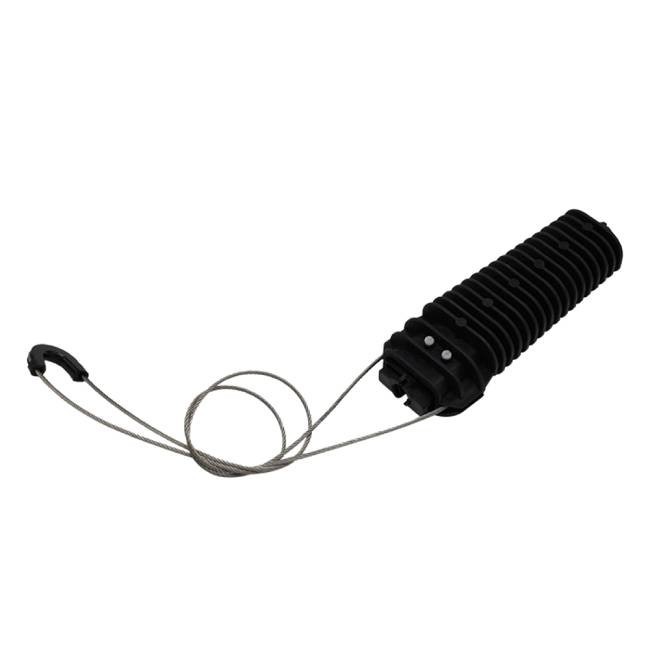

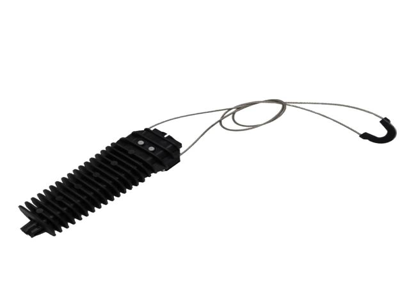

Anchoring Tension Clamp

Technical Highlight:
The Anchoring Tension Clamp adopts an optimized wedge-core design that evenly distributes mechanical tension, preventing stress concentration and ensuring long-term conductor protection and reliability.

• High Tensile Strength: Withstands up to 10 KN of tension, delivering dependable support for main distribution lines and heavy-load applications.
• Wide Cable Compatibility: Fits conductors ranging from 8 mm² to 15 mm², offering flexibility for multiple field configurations.
• Upgraded Wedge Self-Lock: The advanced self-locking mechanism resists slippage, vibration, and long-term stress deformation.
• Excellent Environmental Stability: Withstands temperatures from –40 °C to +120 °C and provides superior resistance to UV radiation, corrosion, and salt fog.
• Maintenance-Free Performance: Designed for long-term operation with minimal service requirements, reducing lifecycle costs.
• Efficient Installation: Lightweight, tool-free assembly enables quick installation by a single operator-saving both labor and time.
• Reliable Electrical Safety: Fully insulated outer shell prevents electrical conduction, minimizing short-circuit risks in live-line environments.

Manufactured with high-strength nylon through precision injection molding, reinforced with anti-corrosive stainless-steel wire, the Anchoring Tension Clamp achieves both lightweight construction and superior mechanical endurance.
The outer shell is UV-stabilized and weather-resistant, capable of maintaining its strength under tropical sun exposure, desert dryness, and marine humidity.
Each component undergoes automated mold precision control, keeping tolerance within ±0.02 mm, ensuring consistent performance across production batches.
Metal components receive anti-oxidation and anti-corrosion treatment, while the polymer body integrates anti-aging additives-delivering over 25 years of stable operation even in demanding outdoor conditions.

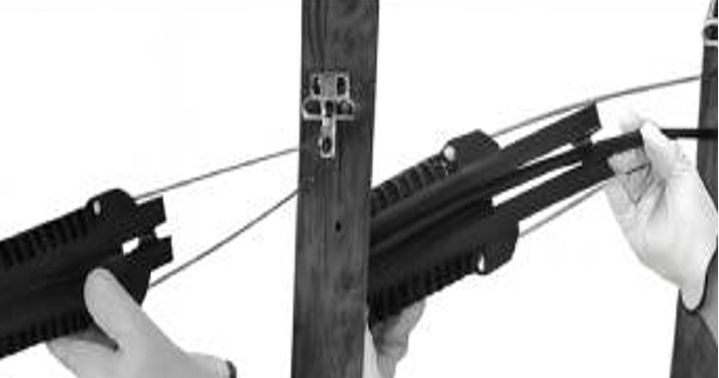

STEP1-2

1.Anchor the clamp on the pole.
2.Push the wedge in the clamp:tighten the wedge to fixthe cable.

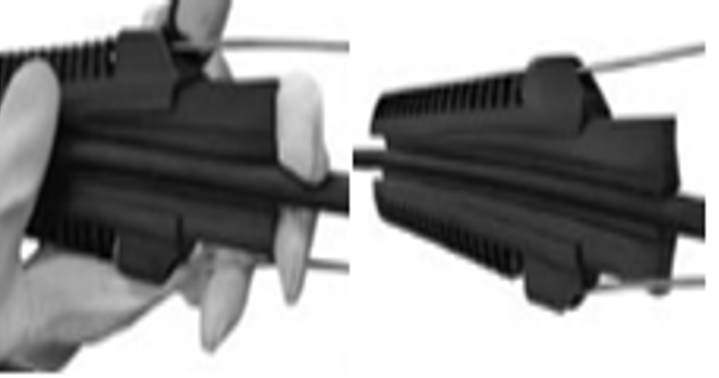

STEP3-4

3.Hand-pull the wedge toverify the cable doesn't slip out.
4.Examine the clamp is secure by observing the wedge position.

STEP5

5.Locating the clamp is secure by observing thewedge position.

1.Attach the suspension hook to the pole bracket or clamp arm.
2.Place the main conductor into the groove of the clamp body.
3.Insert the wedge core to complete the self-locking action.
4.Verify alignment and cable tension direction.
◆ The entire installation requires no special tools, allowing one technician to complete setup efficiently.
◆ Compared with traditional metallic clamps, installation time is reduced by up to 35%, while the uniform clamping force prevents torque imbalance and wire slippage.
◆ This design greatly enhances engineering efficiency and reduces project labor costs.

• Terminal anchoring of overhead distribution lines
• Optical communication cable tensioning and support
• Industrial and municipal lighting line installations
• Renewable energy systems such as wind and solar plants
• Railway signaling, monitoring, and long-span communication lines

Its broad adaptability makes the Anchoring Tension Clamp a trusted solution across power, telecom, and utility infrastructure sectors.

• High load capacity: 10 KN stable tensile resistance for long-span lines.
• Environmental resilience: Operates reliably from –40 °C to +120 °C.
• UV, corrosion, and salt-fog resistance for outdoor durability.
• Long service life: Over 25 years of maintenance-free performance.
• Quick installation: Single-person operation without tools.
• Full insulation: Prevents electrical leakage or short-circuiting.
• Certified reliability: Compliant with multiple international standards.

The wedge self-locking design guarantees even tension along the conductor, minimizing stress concentration.
Even under strong winds, heavy ice loads, or dynamic vibration, the clamp maintains a secure grip without loosening.
Its reinforced structure absorbs mechanical shock and ensures continuous, stable line performance under sudden load fluctuations.

The Anchoring Tension Clamp has passed extensive laboratory simulations including UV aging, salt spray, hot-cold cycling, and humidity tests.
After 2000 hours of UV exposure, no cracking or surface degradation was observed.
In real-world field trials across coastal and desert regions, it maintained functionality beyond 25 years.
Enhanced polymer composition prevents discoloration, embrittlement, and fatigue-making it a reliable long-term outdoor solution.

• Fully insulated, non-conductive housing ensures electrical safety.
• Stainless steel elements resist galvanic corrosion.
• Compatible with ADSS, ABC, and OPGW cable types.
• Fits a variety of hooks, brackets, and pole structures.
• Successfully tested for cross-model replacement with several internationally equivalent designs.

Oman Power Distribution Project: Operated stably under +50 °C desert temperatures with zero slippage incidents.
Chile Andes Transmission Lines: Withstood –30 °C conditions while maintaining steady mechanical tension and reduced inspection intervals.
Philippines Communication Project: Quick installation saved over 30% labor time, improving project turnover.
African Solar Plant Deployment: Achieved superior UV resistance with 3000 hours of UV exposure testing and continuous reliability.

These proven field cases demonstrate Anchoring Tension Clamp's global reliability in mechanical endurance, safety, and environmental adaptability.

• Tensile Test: 10 KN - 100% passed
• UV Aging Test: 2000 hours - no cracks or deformation
• Salt Fog Test: 1000 hours - no corrosion
• Temperature Cycle Test: –40 °C ↔ +120 °C - fully stable
• Certifications: ISO 9001, CE, RoHS, TÜV

All testing conducted by accredited third-party laboratories in compliance with IEC 61284 international standards.

• Inner moisture-proof bags + five-layer corrugated cartons + pallet reinforcement
• Neutral or customized logo packaging options
• Standard export documentation: CO, invoice, packing list
• 7 days for stock items, 10–15 days for customized orders

Each shipment includes shock-absorbent lining to ensure product integrity during transit.

• Configurable by conductor diameter, tensile grade, and hook structure.
• Supports OEM / ODM collaboration and mold development.
• Optional laser engraving for logo and identification codes.
• Comprehensive engineering selection manual available.

Our technical team provides rapid configuration and model matching for any project requirement.

• Installation manuals and on-site training guidance.
• Engineering consultation for design and optimization.
• Long-term after-sales support and maintenance planning.
• Professional advice on tension selection and environmental matching.
