Technical Specifications
|
Model |
applicable steel strand |
main dimension (mm) |
nominal failure load(kN) |
Reference weight(kg) |
||||
|
Cross-section(mm²) |
Outer diameter(mm) |
C |
M |
L |
R |
|||
|
NX-1 |
25~35 |
Φ6.6~7.8 |
18 |
16 |
150 |
6 |
45 |
1.19 |
|
NX-2 |
50~70 |
Φ9.0~11.0 |
20 |
18 |
180 |
7.3 |
88 |
1.76 |
|
NX-3 |
100~125 |
Φ13.0~14.0 |
24 |
24 |
200 |
7.3 |
143 |
3.2 |
|
NX-4 |
135~150 |
Φ15.0~16.0 |
28 |
27 |
220 |
8 |
164 |
5.3 |
Product introduction

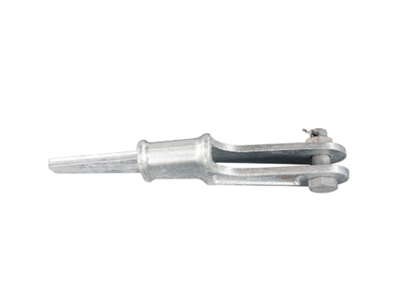

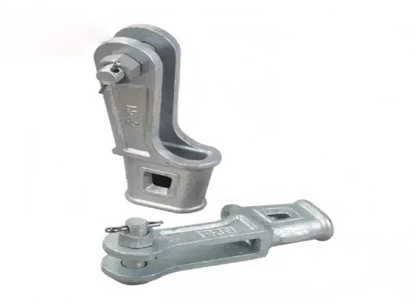

● NX Wedge Tension Clamps: Tension clamps are primarily used in overhead power lines or substations to secure conductors and grounding wires. They are connected to tension insulators via connecting hardware or used to secure grounding wires to utility poles and transmission towers.
● Based on their structural design and installation methods, they are mainly classified into three types: bolt-type, compression-type, and wedge-type.
● Core Materials: The body and wedge are made of malleable cast iron, offering high strength and good toughness; fasteners are made of Grade 8.8 hot-dip galvanized carbon steel, providing anti-loosening and anti-corrosion properties; the insulating cover is made of silicone rubber, ensuring weather-resistant insulation; stainless steel and aluminum alloy materials are available upon request to suit specific applications.
Product Features
1. The structure utilizes a wedge-locking principle, resulting in a compact and rational design.
2. Constructed from superior materials, the product exhibits excellent corrosion resistance.
3. Thanks to its stable structure and reliable gripping force, it is capable of meeting a wide range of tensile load requirements.
4. The product is reusable, ensuring both safety and environmental friendliness.
5. Once installed, the product requires no maintenance, thereby reducing subsequent maintenance costs.
After-Sales Policy
Quality assurance: Products are designed, manufactured, and inspected strictly in accordance with national standards GB/T 2314, DL/T 759, etc., and a certificate of quality is provided.
Technical Support: We provide 24-hour technical consultation services to assist in resolving technical issues related to selection, installation, and use.
Product processing, packaging and transportation location and other issuesneed to be communicated in advance to avoid impact.
Due to the special nature of this product, returns without reason within seven days are not supported. For exchanges, a 15% handling fee will be deducted; round-trip shipping costs are borne by the buyer.
●Temperature Range: -40°C to +80°C. Withstands extreme high and low temperatures without brittleness or softening, ensuring stable performance.
● Climatic Conditions: Resistant to salt spray, acid rain, and UV radiation; withstands wind and ice accumulation; suitable for coastal areas, industrial pollution zones, plateaus, mountainous regions, and other environments.
● Altitude: Suitable for altitudes up to 3,500 m. Special surface treatments can be customized for high-altitude applications to ensure stable performance.
● Protection Rating: Bare line clamps ≥ IP44; with protective covers ≥ IP54. Resistant to dust and light rain, preventing corrosion and electrical accidents.
Our Website
jkte888.com
Phone Number
+86 189-2579-5886
boogie@jkte888.com
Certifications
Please feel free to contact us with any inquiries. We look forward to working with you.
1.CE - European Safety Standard
2.RoHS - Free of Hazardous Substances
3.ISO 9001:2015 Quality Management System
4.Multi-country low-voltage line compliance certification
ＦＡＱ
Q: What is the main difference between the NX Wedge Tension Clamp and the NY hydraulic-type strain clamp?
A: The NX wedge-type clamp relies on the self-locking friction generated by its internal wedges to bear the load; it requires no crimping and is detachable. It is primarily used for medium-to-small cross-section conductors on 10kV and lower voltage lines.
The NY hydraulic-type clamp relies on the plastic deformation caused by hydraulic crimping to bear the load; it is non-detachable and offers superior gripping strength. It is primarily used for high-voltage lines with large cross-section conductors.
Q: Why does the NX Wedge Tension Clamp tighten further as the tension increases?
A: When the conductor is subjected to tensile force, it drives the internal wedges to move in a tightening direction. Consequently, the normal pressure and friction between the wedges, the clamp body, and the conductor increase simultaneously, creating a self-locking effect. Therefore, the greater the applied load, the more reliable the clamping becomes.
Q: Can the NX Wedge Tension Clamp be used on insulated conductors?
A: Yes. The NX series features specific structural designs tailored for use with overhead insulated conductors. During installation, it is generally unnecessary to strip away the insulation layer; the clamp can grip the insulation layer directly without causing any damage to the conductor's insulation.
