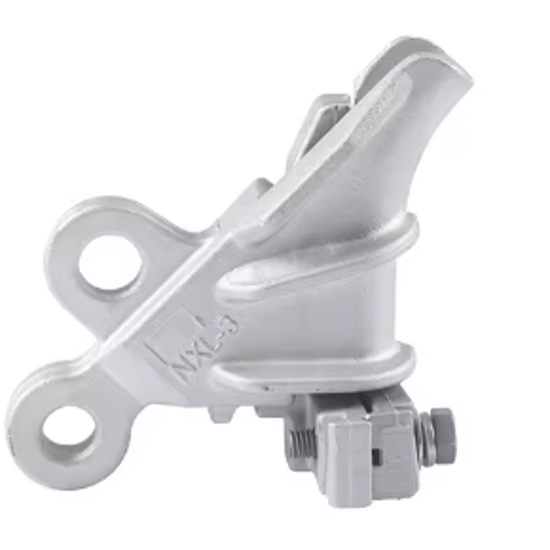

Features of wedge type strain clamp
● Insulation Performance: Insulation resistance > 1.0×10¹⁴ Ω; power frequency withstand voltage ≥ 18 kV (maintained for 1 minute without breakdown);
● Grip Strength: Not less than 95% of the calculated breaking strength of the conductor, preventing conductor slippage;
● Structure: Wedge-type self-locking design; no specialized crimping tools required; easy installation;
● Insulation Cover Weather Resistance: Maintains good performance after 1,008 hours of artificial climate aging testing;
● Applicable Voltage: Distribution lines rated at 10 kV and below.
Technical Specifications
|
Model |
Applicable Nominal Cross-Section of Aerial Insulated Aluminum Stranded Conductors (mm²) |
Stripping Length (mm) |
Main Dimensions (mm) |
Nominal Breaking Load (kN) |
Material |
|||
|
L |
φ |
R |
B |
|||||
|
NXL-1 |
JKLYK-10, 35~50 |
225 |
145 |
18 |
5 |
16 |
7.4 |
Aluminum Alloy |
|
NXL-2 |
JKLYK-10, 70~95 |
245 |
155 |
18 |
6 |
16 |
14.5 |
Aluminum Alloy |
|
NXL-3 |
JKLYK-10, 120~150 |
255 |
165 |
18 |
8.5 |
16 |
22.1 |
Aluminum Alloy |
|
NXL-4 |
JKLYK-10, 185~240 |
300 |
190 |
18 |
11 |
18 |
36.4 |
Aluminum Alloy |
|
Model |
Applicable Conductor Cross-Section (mm²) |
Grip Strength (kN) |
Nominal Breaking Load (kN) |
Remarks |
|
|
10kV |
20kV |
||||
|
NXL-2J |
35~70 |
25~35 |
6.7 |
10.8 |
Suitable for insulated aluminum conductors |
|
NXL-3J |
95~150 |
50~95 |
13.7 |
22.5 |
Suitable for insulated aluminum conductors |
|
NXL-4J |
185~240 |
120~150 |
22.5 |
36.5 |
Suitable for insulated aluminum conductors |
Customization Services
Direct from the manufacturer, great value for money.
Please feel free to contact us with any inquiries.
We support non-standard customization and can tailor the following based on customer requirements:
● Specification Customization: Clamps for special conductor cross-sections and outer diameters, compatible with non-standard insulated or bare conductors;
● Material Customization: Corrosion-resistant, reinforced aluminum alloy clamps and insulating covers customized according to the operating environment;
● Functional Customization: Clamps with visual inspection, anti-loosening, and anti-theft features to facilitate operation and maintenance monitoring;
● Marking Customization: Laser marking of model numbers, batch numbers, and customer logos to facilitate project traceability; We provide free technical consultation, recommend suitable models and customization solutions based on project requirements, and respond quickly to customization requests.
Production and Quality Control

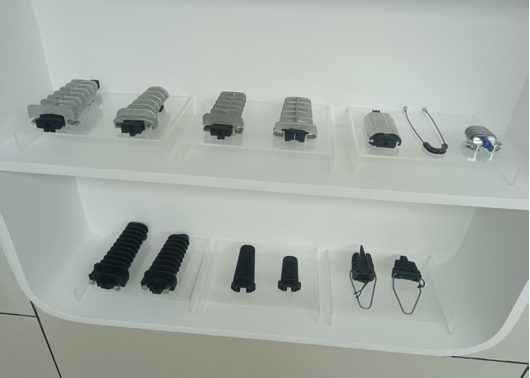

Our factory & quipment
Factory direct sales,customization services available

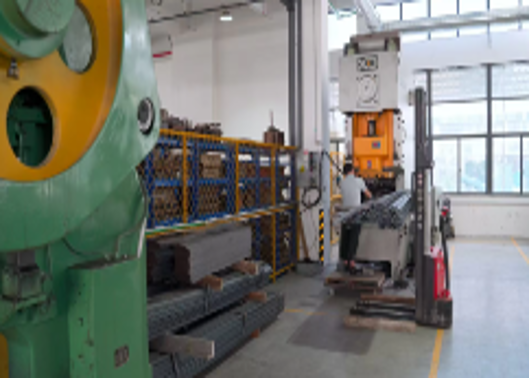

◆ Production Control: Utilizing automated stamping and injection molding equipment to achieve standardized mass production; raw materials undergo strict incoming inspections, ensuring that aluminum alloys, insulating materials, and fasteners all comply with relevant national standards, thereby preventing the use of non-conforming materials in production.
◆ Quality Control: Inspection checkpoints are established at every production stage. After forming, we inspect appearance and dimensions; after machining, we calibrate the fit between the wedge core and the body; finished products undergo grip strength testing, insulation performance testing, and weather resistance testing. Non-conforming products are strictly prohibited from leaving the factory, and production batch records are maintained to ensure full product traceability.
FAQ
Q: What is the applicable voltage range?
A: Widely used in 10kV, 35kV, 110kV, and 220kV distribution and transmission lines.
Q: What is the grip strength of the NXL wedge type strain clamp?
A: The grip strength of standard products is no less than 95% of the conductor's rated breaking strength, meeting the requirements for safe line operation.
Q: Does installation require special tools?
A: No, installation can be completed using a standard wrench. For some large-cross-section models, a simple tapping tool may be used to position the clamp.
Q: Can the conductor be removed and reused after installation?
A: Reuse is generally not recommended. Removal may damage the wedge and the conductor, and the grip strength cannot be guaranteed upon reinstallation.
Q: Can NXL clamps be used for cross-arm installation?
A: No, they are primarily designed for terminal and tension anchoring applications. Dedicated cross-arm clamps should be used for cross-arms.
Q: Is a rubber conductor guard required?
A: For large-cross-section and high-stress conductors, it is recommended to install a conductor guard to prevent vibration-induced wear and crushing damage.
