Product Introduction

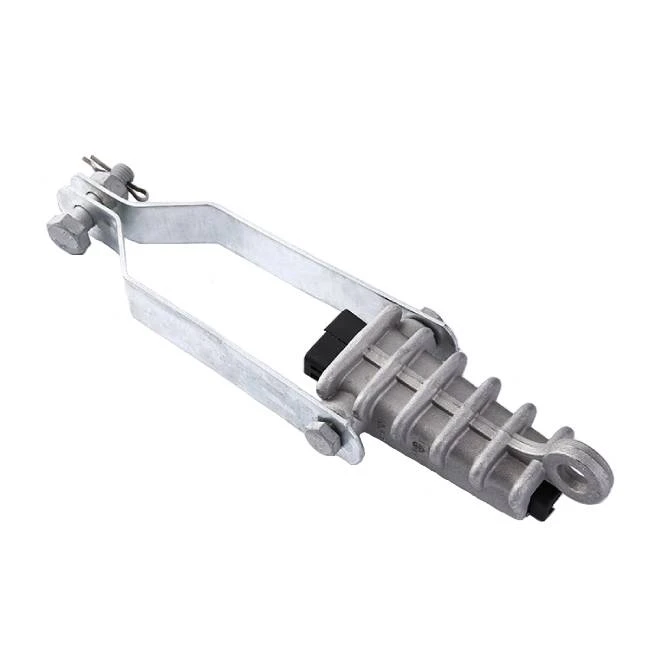

NXJG-3 Power Cable Anchor Clamp Aluminum

Suitable for conductor cross-sections of 95–150 mm², this clamp is specifically designed for tension fixing on 10 kV medium-to-heavy-duty insulated lines, and is suitable for large-cross-section insulated conductors in urban trunk lines and industrial park lines. No need to strip the insulation; the reinforced clamp body provides stable clamping force and can withstand high tension, making it the core tension hardware for medium-to-heavy-duty insulated lines.

Technical Parameters

Model	Applicable nominal cross-sectional area for overhead insulated aluminum stranded wire	Main dimensions(mm)			Nominal breaking load(kN)	Quality(kg)	Material
Model		L	C	M	Nominal breaking load(kN)	Quality(kg)	Material
NXJG-1	JKLYJ-10,35～50	230	18	14	7.4	1.1	aluminum alloy
NXJG -2	JKLYJ-10,70～95	272	18	16	14.5	1.2	aluminum alloy
NXJG -3	JKLYJ-10,120～150	322	18	16	22.1	2	aluminum alloy
NXJG -4	JKLYJ-10,185～240	370	18	16	36.4	2.2	aluminum alloy

Detailed technical parameters

NXJG-3 Power Cable Anchor Clamp Aluminum

Model NXJG-3 is suitable for overhead insulated aluminum stranded wire with a nominal cross-sectional area of 120–150 mm², a total length (L) of 322 mm, a groove width (C) of 18 mm, a bolt size (M) of 16 mm, a nominal breaking load of 22.1 kN, a product weight of 2.0 kg, and is made of aluminum alloy.

Product Features

Features of Power Cable Anchor Clamp Aluminum

Material: High-strength aluminum alloy body, insulated plastic wedge core, and carbon steel mounting plate-lightweight with reliable insulation protection. Process: Die-casting + precision machining ensures precise wedge taper for a secure grip on the wire that resists loosening.

Corrosion Protection: Aluminum body surface passivated; steel mounting plate hot-dip galvanized; resistant to outdoor moisture and corrosion.

Standards: Complies with GB/T2314, GB/T2315, DL/T764, and DL/T284 power hardware industry standards.
