Technical Specifications
|
Model |
Applicable Nominal Cross-Section of Aerial Insulated Aluminum Stranded Conductors (mm²) |
Stripping Length (mm) |
Main Dimensions (mm) |
Nominal Breaking Load (kN) |
Material |
|||
|
L |
φ |
R |
B |
|||||
|
NXL-1 |
JKLYK-10, 35~50 |
225 |
145 |
18 |
5 |
16 |
7.4 |
Aluminum Alloy |
|
NXL-2 |
JKLYK-10, 70~95 |
245 |
155 |
18 |
6 |
16 |
14.5 |
Aluminum Alloy |
|
NXL-3 |
JKLYK-10, 120~150 |
255 |
165 |
18 |
8.5 |
16 |
22.1 |
Aluminum Alloy |
|
NXL-4 |
JKLYK-10, 185~240 |
300 |
190 |
18 |
11 |
18 |
36.4 |
Aluminum Alloy |
|
Model |
Applicable Conductor Cross-Section (mm²) |
Grip Strength (kN) |
Nominal Breaking Load (kN) |
Remarks |
|
|
10kV |
20kV |
||||
|
NXL-2J |
35~70 |
25~35 |
6.7 |
10.8 |
Suitable for insulated aluminum conductors |
|
NXL-3J |
95~150 |
50~95 |
13.7 |
22.5 |
Suitable for insulated aluminum conductors |
|
NXL-4J |
185~240 |
120~150 |
22.5 |
36.5 |
Suitable for insulated aluminum conductors |

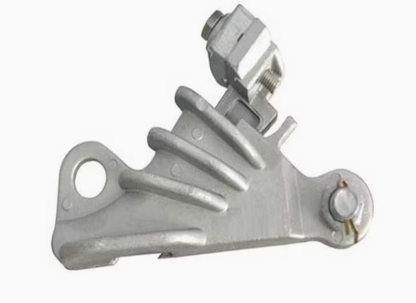

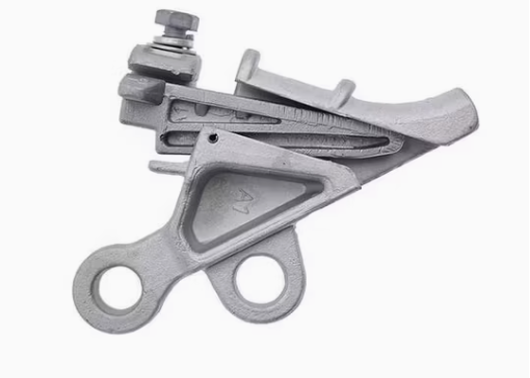

Features of wedge type insulation strain clamp
● Insulation Performance: Insulation resistance > 1.0×10¹⁴ Ω; power frequency withstand voltage ≥ 18 kV (withstands voltage for 1 minute without breakdown);
● Grip Strength: Not less than 95% of the calculated breaking force of the conductor; the conductor does not slip easily;
● Structure: Wedge-type self-locking design; no special crimping tools required; easy to install;
● Insulation Cover Weather Resistance: Maintains good performance after 1,008 hours of artificial climate aging testing;
● Applicable Voltage: Distribution lines rated at 10 kV and below.
Environmental Adaptability
Factory direct sales,customization services available
◆ Temperature Range: -30°C to +90°C; withstands extreme cold, intense heat, and large diurnal temperature fluctuations without risk of brittle cracking, deformation, or insulation aging;
◆ Climatic Environment: Suitable for harsh conditions such as high wind and sand, high salt fog, heavy rainfall, and icing; excellent weather resistance with stable performance after artificial climate aging tests;
◆ Corrosive Environment: The aluminum alloy body is oxidation-resistant, and fasteners are hot-dip galvanized for corrosion protection; withstands atmospheric and industrial dust corrosion, suitable for standard outdoor and general corrosive environments; 4. Terrain: Suitable for various terrains including flat land, hills, suburban areas, and farmland; particularly suitable for lines in windy regions, enhancing the line's wind resistance.
Safety Standards
Please feel free to contact us with any inquiries.
Direct from the manufacturer, great value for money.
● Strictly complies with national and industry standards such as GB/T 2314-2008 "General Technical Requirements for Electrical Hardware" and DL/T 757-2021 "Tension Clamps";
● Features a wedge type insulation strain clamp design that ensures a stronger grip as the load on the conductor increases, preventing conductor slippage;
● Meets insulation performance standards to eliminate risks of leakage and short circuits;
● Includes new anti-loosening requirements for fasteners to prevent connection failure caused by line vibration, ensuring the safe and stable operation of distribution lines.
Certificate
Certificate
Certificate
Certificate
Certificate
FAQ
Q: Can it be used in coastal or high-humidity corrosive environments?
A: Yes, the aluminum alloy + galvanized anti-corrosion structure offers excellent resistance to salt spray and corrosion, making it suitable for harsh outdoor environments.
Q: What is the difference between NXL wedge type insulation strain clamp and NY type tension clamps?
A: NXL is a wedge-type, crimp-free design, while NY is a hydraulic crimping type; NXL allows for faster installation, and NY is primarily used for long-span and ultra-high-voltage lines.
Q: Do line clamps require regular inspection after installation?
A: Yes. Focus on checking whether the wedge is loose, whether the bolts are tight, whether the conductor has slipped, and whether the body has cracks.
Q: What should be done if the conductor slips slightly?
A: Immediately shut down the power supply for repair. Slippage indicates a failure in the clamping mechanism; the clamp must be replaced, and continued operation is strictly prohibited.
Q: Can NXL wedge type insulation strain clamps be used with insulated conductors?
A: They cannot be used directly; insulated conductors require the use of specialized insulated tension clamps.
Q: What is the typical service life?
A: Under normal conditions, the service life can reach 20 to 30 years; with proper maintenance, it can be even longer.
