JJCD10-95-25 Insulated Piercing Connector for Abc Cable

Designed for conductor cross-sections of 25–95 mm², this clamp is specifically engineered for 10kV distribution transformer lines-supporting lightning protection grounding and the attachment of grounding wires during maintenance outages-as well as for grounding retrofit projects on distribution network branch lines and transformer area feeders. It features a controlled piercing depth of 4–5 mm and a dual-nut design that ensures uniform clamping force. With a rated current of 257 A and excellent short-circuit withstand performance, it is a specialized insulation-piercing grounding clamp for small-to-medium cross-section 10kV cables.

Technical Parameters

Designed for earthing protection of 10kV distribution transformer lines.
Product Model	Applicable Conductor	Piercing Depth	Nominal Current	Number of Nuts
Small Size	25-95	3-4	316	1
JJCD10-95-25	25-95	4-5	257	2
JJCD10-120-35	35-120	3-4	276	2
JJCD10-95-185	95-185	4-5	476	2
JJCD10-150-240	150-240	4-5	476	2

Detailed technical parameters

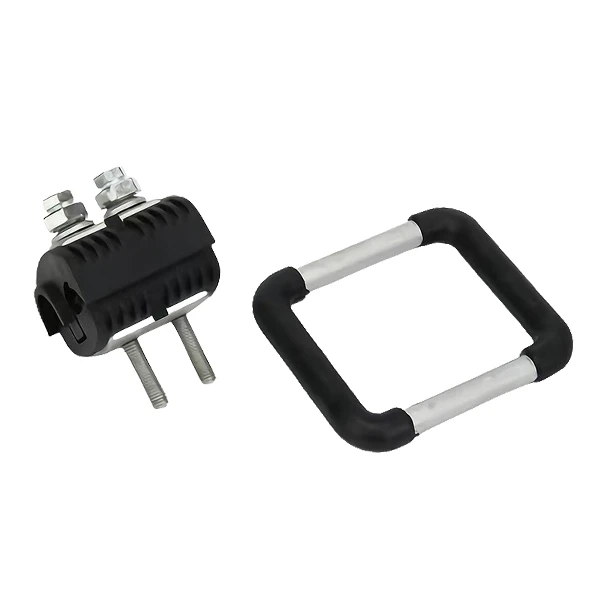

JJCD10-95-25 Insulated Piercing Connector for Abc Cable

Model: JJCD10-95-25; Applicable conductor cross-section: 25–95 mm²; Piercing depth: 4–5 mm; Rated current: 257 A; Number of nuts: 2.

Product Features

Features of the JJCD10-95-25 Insulated Piercing Connector for Abc Cable

Material: Features a thickened glass-fiber reinforced PA66 insulating housing paired with tin-plated piercing teeth that offer an enlarged contact surface. It utilizes high-strength carbon steel bolts secured by dual nuts. Compatible with 25–95 mm² cables, it supports a rated current of 257 A, meeting the requirements for grounding and short-circuit current flow on 10kV distribution transformer lines.

Manufacturing: Integrated injection molding ensures a precise fit with the cable's outer diameter. The piercing depth is stably controlled at 4–5 mm. Synchronous dual-nut locking ensures uniform force distribution and consistent, controllable installation torque, resulting in a tight, secure grip that resists slipping or detachment under load.

Corrosion Resistance: Metal components undergo overall galvanizing and passivation to withstand salt spray and moisture. The sealed internal cavity blocks moisture from reaching conductive contact points, preventing oxidation and overheating. The weather-resistant plastic housing withstands prolonged outdoor exposure to sunlight and rain, delaying aging and cracking.

Standards: Complies with the manufacturing specifications for electric power fittings under GB/T2314, GB/T2315, DL/T764, and DL/T284.
